Custom Slotted Spring Pins Manufacturer for Radial Retention & Mechanical Assembly

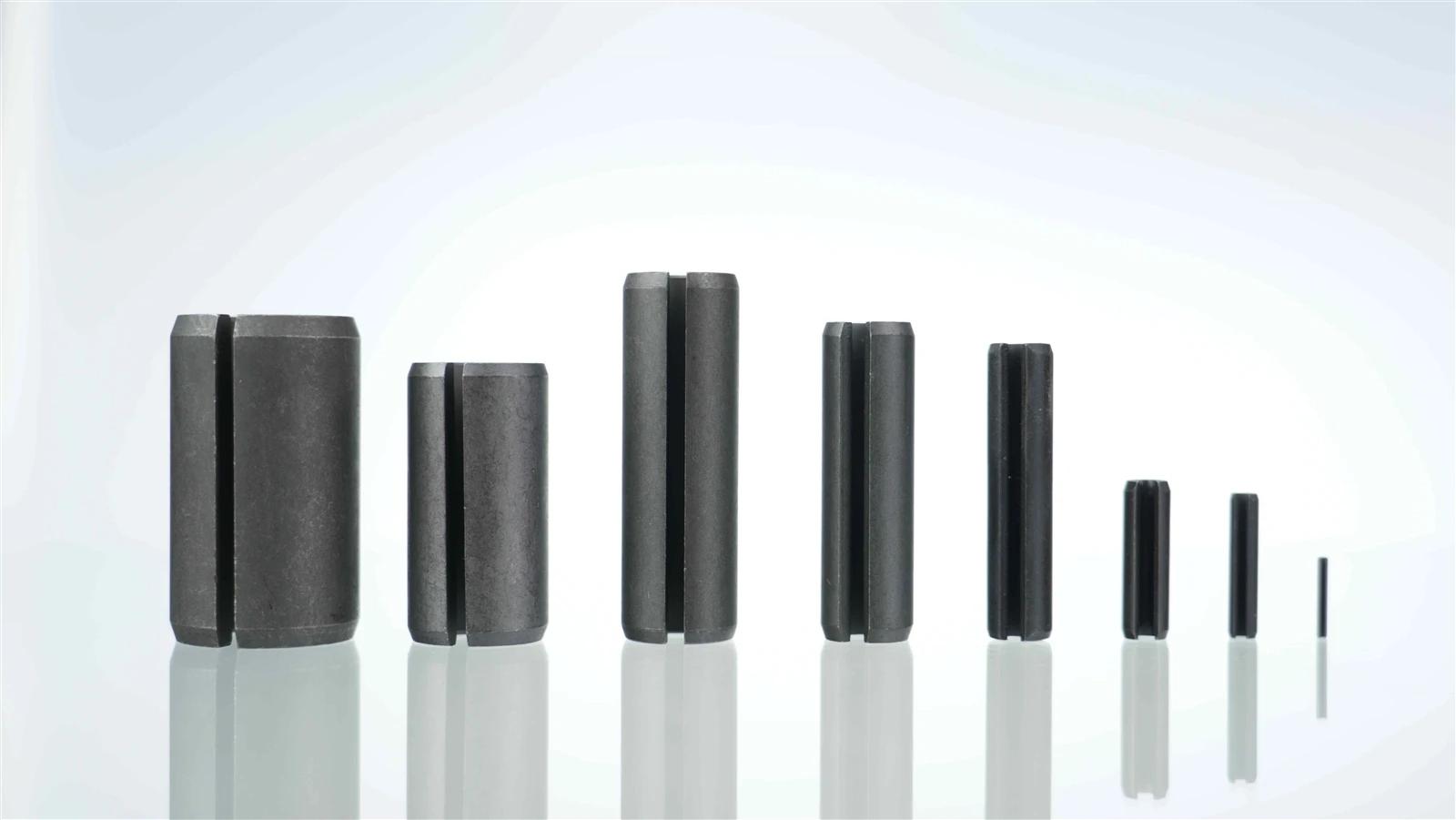

Anhui Pins is a spring pin manufacturer and supplier in China, specializing in slotted pins and slotted spring pins for industrial assembly, component retention, and mechanical fastening. The longitudinal slot allows the pin body to compress during insertion and exert radial pressure against the mating hole, supporting retention in suitable shaft connections, hinge joints, and mechanical assemblies.

We manufacture standard and custom slotted spring pins to applicable specifications, including DIN 1481 and ISO 8752, as well as customer drawings and samples. Production requirements can cover pin diameter, free diameter, length, slot geometry, wall thickness, and hardness, subject to the selected pin type and specification. Anhui Pins supports OEM projects and bulk orders for industrial buyers seeking standard slotted pins or custom configurations matched to specific hole dimensions and assembly requirements.

Need Custom Slotted Pins?

Send your drawings, size requirements, material grade, or batch quantity. We can support OEM manufacturing and fast quotation.

Request a Quote


Elastic Fastening

Stable interference-fit retention for industrial fastening systems and mechanical assemblies.



Anti-Loosening

Reliable retention under vibration, repeated movement, and mechanical load conditions.



OEM Production

Flexible custom manufacturing based on drawings, samples, specifications, and production quantities.



Precision Quality

Controlled dimensions, material consistency, and inspection procedures for stable batch production.

Standards

Manufactured in accordance with standards

Standard
Specification
Description
View PDF file
ISO
ISO 8752
Spring-Duty Straight Pins-Slotted, Heavy Duty
PDF
ISO
ISO 13337
Spring-Duty Straight Pins-Slotted, Light Duty
PDF
GB/T
GB/T 879.1
Spring-Duty Straight Pins-Slotted, Heavy Duty
PDF
GB/T
GB/T 879.2
Spring-Duty Straight Pins-Slotted, Light Duty
PDF





Slotted spring pins can be specified according to applicable standards, including DIN 1481 and ISO 8752 where supported by the product range. Buyers should confirm the required standard, nominal diameter, length, and dimensional tolerances before ordering.

  • ISO 13337 Slotted Spring Pins
    ISO 13337 Slotted Spring Pins are cylindrical elastic fasteners manufactured with a longitudinal slot to provide flexibility during installation. When inserted into a drilled hole, the pin...
  • Heavy Duty Slotted Spring Pins ISO 8752
    Standard: ISO 8752
    Material: Spring Steel / Stainless Steel
    Duty Type: Heavy Duty
    Diameter: Standard & Custom Diameters Available
    Length: Standard & Custom Lengths...
  • ISO 8752 Slotted Pins
    Standard: ISO 8752 (DIN 1481)
    Product Type: Slotted Spring Pins / Heavy Duty Slotted Pins
    Nominal Diameter: M1.5 – M50 (Custom sizes available upon request)
    Material: Spring...
  • Heavy Duty Slotted Spring Pins
    Manufacturing Standards: ISO 8752 (DIN 1481) Heavy Duty, ISO 13337 (DIN 7346) Light Duty
    Diameter Range (d): Metric 1.0 mm – 50.0 mm / Inch 1/16" – 2"
    Length Range (L): 4.0 mm – 200.0 mm...
  • Slotted Roll Pins
    Manufacturing Standards: ISO 8752 (Heavy Duty), ISO 13337 (Light Duty)
    Diameter Range (d): Metric 1.0 mm – 50.0 mm / Inch 1/16" – 2"
    Length Range (L): 4.0 mm – 200.0 mm
    Material...
  • Metric Slotted Spring Pins
    Applicable Standards: ISO 8752 / ISO 13337 / GB/T 879.1 / GB/T 879.2
    Duty Types: Heavy Duty / Light Duty
    Diameter: Metric 2.0–20.0 mm
    Length: 6.0–150.0 mm
    Material: Spring...
  • Slotted Spring Pins
    Standards: ISO 8752 / ISO 13337
    Duty Types: Heavy Duty / Light Duty
    Material: Spring Steel / Stainless Steel
    Diameter: Metric & Inch Sizes / Custom Diameters Available
    Length:...
  • Stainless Steel Spring Pins
    Diameter: Available in standard diameters according to ISO 8752, DIN 1481 standards. Custom diameters are available upon request.
    Length: Available in various standard lengths with custom...

Custom Slotted Spring Pins Manufacturing Capability

Anhui Pins supports OEM production of slotted spring pins through coordinated manufacturing processes, including slot forming, heat treatment, finishing, and dimensional inspection, according to the applicable product specifications. Key process parameters are controlled to meet defined requirements for pin geometry, hardness, and functional performance.

For industrial buyers and bulk orders, production planning and in-process inspection help maintain consistency across manufacturing batches. Process selection and inspection criteria are determined by the pin type, material, and applicable technical requirements.

Custom Slotted Spring Pins

Slotted Pins Manufacturing Process Flow



Tooling & Die

Tooling & Die Manufacturing

Progressive dies control slot geometry, forming radius, and compression behavior during insertion.

Raw Material Slitting

Raw Material Slitting

Spring steel strips are slit into controlled widths to maintain stable feeding and forming accuracy.

Stamping Process

Stamping Process

Steel strips are stamped and rolled into elastic cylindrical structures with controlled slot width.

Heat Treatment

Heat Treatment

Quenching and tempering stabilize hardness, elasticity, and deformation resistance under cyclic load.

Inspection

Heat Treatment Inspection

Hardness, deformation, and dimensional stability are checked after thermal processing operations.

Grinding Process

Grinding Process

Grinding controls outer diameter tolerance and improves surface consistency before coating.

Surface Treatment

Surface Treatment

Natural Finish + Protective Lubricant
Electroplating, Phosphating, Coatings (Hydrogen Embrittlement Relief)

Optical Sorting

Optical Sorting

Optical systems detect slot deviation, deformation, and surface defects before packaging.

Quality Inspection System for Slotted Pins

Anhui Pins applies quality inspection procedures throughout slotted pin production to verify dimensional accuracy, slot geometry, material properties, surface condition, and finished-product requirements. Inspection criteria are defined according to the applicable product specifications and customer requirements.ning performance, and consistent batch quality for industrial applications.



Multi-Stage Quality Inspection

  • Raw Material Inspection: Verify material identification and required material properties against purchasing specifications.
  • Dimensional Inspection: Check pin diameter, length, slot dimensions, and other specified tolerances during production.
  • Hardness Testing: Verify hardness requirements after heat treatment where applicable.
  • Surface Inspection: Check coating condition and specified surface requirements; perform corrosion testing when required.
  • Final Product Inspection: Verify finished dimensions and specified mechanical properties before shipment.

Dimensional and Batch Consistency

For bulk slotted pins and OEM orders, defined inspection criteria help control dimensional variation across production batches. Inspection records can support order verification and repeat-order requirements, subject to the agreed quality documentation.

Production Traceability

Production and inspection records help link applicable material information, manufacturing batches, and inspection results. Documentation requirements can be agreed with industrial buyers before production.



Custom Slotted Spring Pins Manufacturing Options

Our manufacturing facility focuses on precision slotted pin production with stable process control, consistent batch quality, and reliable OEM supply capability. Equipped with automated production systems and precision inspection equipment, we support large-volume industrial orders with stable manufacturing performance.

01

Custom Dimensions and Slot Design

Custom slotted spring pins can be specified according to required diameter, length, free diameter, wall thickness, and slot configuration. Anhui Pins evaluates drawing-based requirements for OEM projects where standard pin dimensions do not meet the assembly design.

02

Material and Mechanical Requirements

Material grades and hardness requirements can be specified according to the intended application, loading conditions, and operating environment. Custom slotted pin orders are reviewed against the required mechanical properties and applicable technical specifications.

03

Surface Finish and Packaging Options

Surface finish and protective coating requirements can be selected according to corrosion exposure, storage conditions, and assembly needs. For bulk slotted spring pin orders, packaging methods, quantity per package, labeling, and identification requirements can be coordinated with industrial buyers.

Slotted Pins for Industrial Applications
Slotted Pins for Industrial Applications

Slotted pins are used for component fastening, positioning, and retention in mechanical assemblies. Applications include:

  • Shaft and Hub Assemblies – Retaining components in suitable shaft and hub connections.
  • Hinges and Pivot Joints – Connecting and securing parts in hinge and pivot mechanisms.
  • Machinery Assembly – Positioning and retaining components in mechanical equipment.
  • Brackets and Linkages – Securing connected parts in industrial hardware and linkage systems.


FAQ





What Is the Difference Between Slotted Pins and Slotted Spring Pins?

Slotted pins are commonly referred to as slotted spring pins. Their longitudinal slot allows the pin body to compress during installation and exert radial pressure against the hole wall, helping retain components in suitable mechanical assemblies.



Which Standards Are Available for Slotted Spring Pins?

Slotted spring pins may be specified to standards such as DIN 1481 or ISO 8752, depending on the pin type and required dimensions. Buyers should confirm the applicable standard and size requirements before ordering.



What Information Is Needed for a Bulk Slotted Pins Order?
Provide the applicable standard, pin dimensions, material, required quantity, and packaging specifications. For OEM orders, drawings or samples can also be submitted for review.



How Do You Select the Correct Slotted Spring Pin for an Industrial Application?

Selection depends on the hole diameter, pin dimensions, material, joint design, and applied loads. Buyers should verify the relevant standard and installation requirements before selecting slotted spring pins for production assemblies.



What Is the Difference Between Heavy-Duty and Light-Duty Slotted Pins?

Heavy-duty and light-duty slotted pins differ in their design dimensions and intended mechanical requirements. Buyers should compare the applicable standard, wall thickness, diameter range, and load requirements to identify the correct type for their application.



What Should Buyers Check When Sourcing Slotted Pins in Bulk?

For bulk slotted pins procurement, buyers should confirm dimensional tolerances, material specifications, applicable standards, surface finish, inspection requirements, and packaging details. These requirements help align the supplied parts with assembly and purchasing specifications.



Which Material Is Suitable for Slotted Spring Pins?

Material selection depends on load conditions, corrosion exposure, and the working environment. Carbon steel and stainless steel may be considered where available, but the final choice should match the required mechanical properties and application conditions.



What Quality Checks Matter When Purchasing Slotted Spring Pins?

Important checks may include pin diameter, length, free diameter, slot dimensions, hardness, and surface condition. For OEM and repeat orders, buyers should agree on applicable tolerances and inspection criteria before production.







With abundant experience, we are one of the most professional slotted pins manufacturers and suppliers in China. Please rest assured to buy high quality slotted pins made in China here from our factory. For custom service and OEM&ODM service, contact us now.
