Custom Compression Limiters Manufacturer for Plastic Assembly Applications

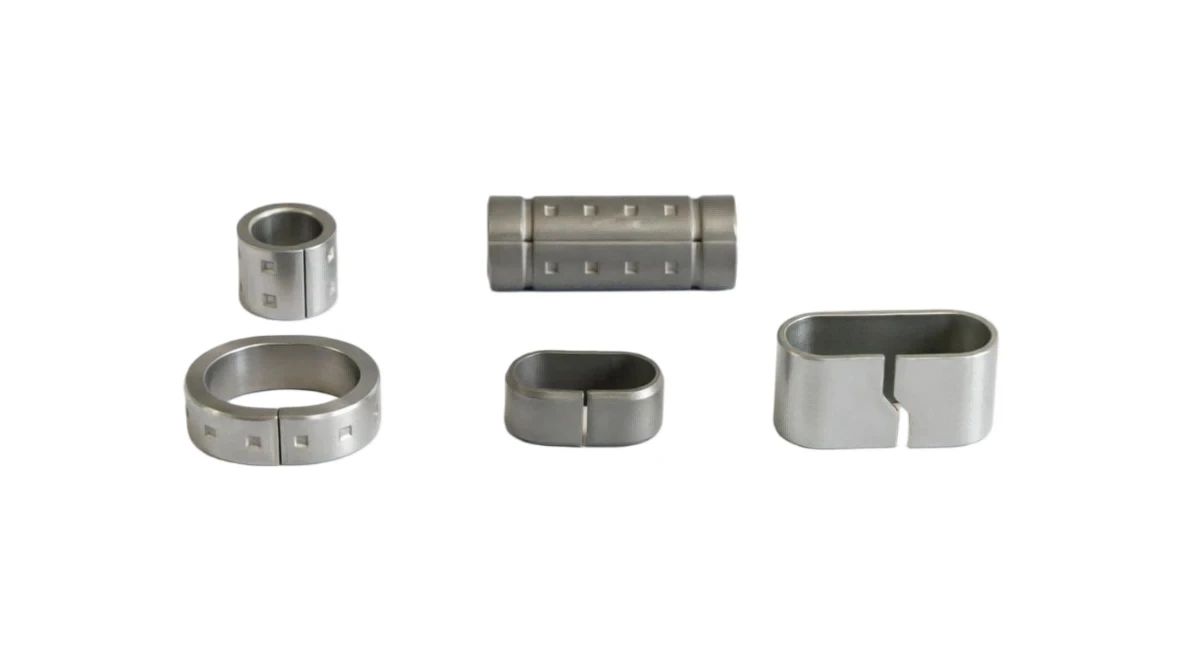

Compression limiters are metal sleeves designed to carry the compressive load generated when a bolt is tightened through a plastic component. The limiter establishes a defined load path between the bolt and mating component, limiting direct compression of the surrounding plastic and helping maintain the designed clamp load. Its inner diameter, outer diameter, wall thickness and length must be matched to the fastener, plastic section and required clamping condition.
As a compression limiters manufacturer and factory in China, we produce molded-in compression limiters and press-in compression limiters for molded plastic assemblies. Molded-in types are positioned on the mold core before plastic injection, while press-in types are installed into a molded hole after the plastic component is formed. Custom production can be specified by ID, OD, length, wall thickness, retention profile, material and surface finish, based on the assembly drawing and installation requirements.
Compression Limiter Product Specifications
Available in multiple installation styles, materials, and dimensional configurations to support plastic assembly applications across automotive, electronics, industrial equipment, and OEM manufacturing projects.
-
![Metal Compression Limiter]()
Metal Compression LimiterProduct Type: Metal Compression Limiter
Size: Metric and Custom Sizes Available
Installation: Application-Specific Installation Options
Material: Carbon Steel / Stainless Steel /... -
![Molded-in Compression Limiter]()
Molded-in Compression LimiterProduct Type: Molded-in Compression Limiter
Standard: Q/PES001-2026
Types: EQ – Embedded Elliptical / FQ – Embedded Round
Installation: In-Mold Embedded During Injection... -
![Press-in Compression Limiter]()
Press-in Compression LimiterInstallation Method: Press-Fit into Pre-Formed Plastic Holes
Inner Diameter: Matched to Bolt Size
Outer Diameter: Selected According to Housing Hole Size
Length: Standard / Custom... -
![Slotted Compression Limiter]()
Slotted Compression LimiterProduct Type: Slotted Compression Limiter
Material: Carbon Steel / Stainless Steel
Structure: Slotted Cylindrical Sleeve
Available Types: AY / BY / CY / DY
Bolt Sizes: M4–M12,... -
![Split Compression Limiter]()
Split Compression LimiterProduct Type: Split Compression Limiter
Material: Carbon Steel / Stainless Steel
Inner Diameter: Matched to Bolt Size
Outer Diameter: Designed According to Housing... -
![Steel Compression Limiter]()
Steel Compression LimiterMaterial: Carbon Steel / High-Strength Steel
Installation: Press-In / Application-Specific Installation
Compatible Bolt Grade: 8.8 / 10.9
Available Series: AY / BY / CY /...
Compression Limiter Features & Benefits
Prevent Plastic Creep
Maintains structural integrity under continuous clamping loads and helps minimize long-term plastic deformation.
Maintain Clamp Load
Provides consistent fastening force throughout the product lifecycle and operating conditions.
Improve Joint Reliability
Improves assembly stability and helps reduce component movement during operation.
Reduce Assembly Failures
Protects fastening points and plastic bosses from excessive compression and assembly damage.
Support Repeated Fastening
Suitable for products requiring maintenance, servicing, or repeated assembly cycles.
Extend Product Life
Enhances durability and helps maintain reliable assembly performance over time.
Compression Limiter Material & Surface Options
Available in multiple material grades and surface treatment options to support different load requirements, environmental conditions, and OEM assembly specifications.
Carbon Steel
Provides stable structural strength and cost-effective performance for general industrial fastening and plastic assembly applications.
Stainless Steel
Suitable for humid, outdoor, or demanding operating environments where long-term corrosion resistance is required.
Surface Treatment
A zinc-nickel alloy coating is applied to improve corrosion resistance, increase surface durability, and ensure long-term performance, with additional surface treatments available upon mutual agreement.
Custom Materials
Alternative alloys, special grades, and customer-specified materials are available to meet unique engineering and performance requirements.
Custom Compression Limiter Manufacturing Services
We support OEM projects with custom dimensions, materials, installation methods, and production specifications for global manufacturing applications.
Compression Limiter Production Process
A streamlined manufacturing process helps ensure dimensional consistency, structural integrity, and surface protection for compression limiter applications.
Frequently Asked Questions
Common questions from engineers, OEM buyers, and product development teams regarding compression limiter selection and manufacturing.
What is a compression limiter?
A compression limiter is a precision metal insert that controls clamp loads in plastic assemblies and helps prevent plastic deformation during fastening.
How does a compression limiter work?
The limiter transfers fastening loads through its metal body rather than the surrounding plastic structure.
Why are compression limiters used in plastic assemblies?
They help prevent creep, maintain clamp force, and improve long-term assembly reliability.
What materials are available?
Common options include carbon steel, stainless steel and project-specific materials.
Can compression limiters be customized?
Yes. Custom lengths, diameters, knurling patterns, coatings, and installation styles are available.
Do you support OEM manufacturing?
OEM production is available based on engineering drawings, samples, and project specifications.
With abundant experience, we are one of the most professional compression limiters manufacturers and suppliers in China. Please rest assured to buy high quality compression limiters made in China here from our factory. For custom service and OEM&ODM service, contact us now.
